中滤科技 DCC-33605EBCE 天然气聚结滤芯 集气站管道过滤器滤芯 替代款聚结分离滤筒

✅ Product Overview

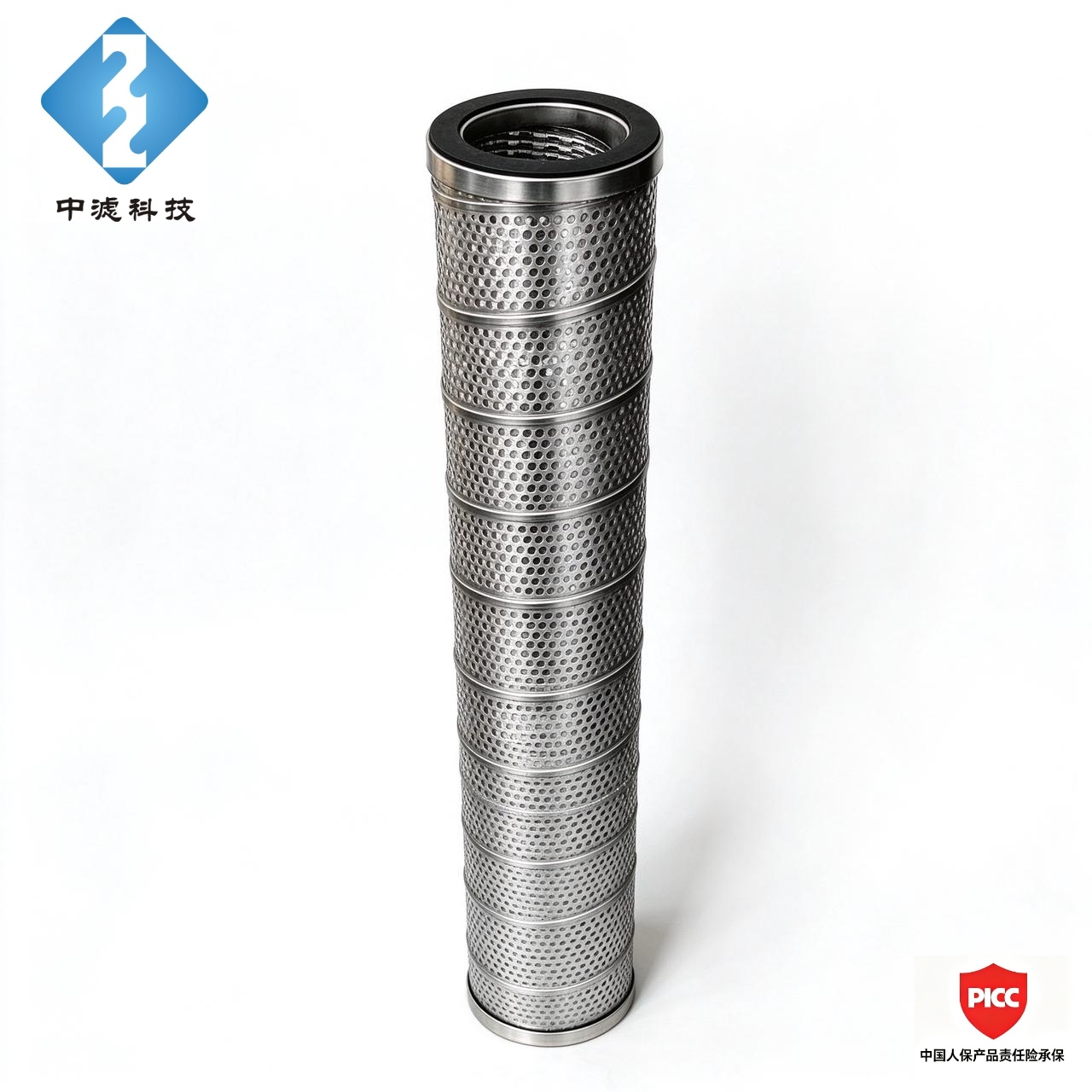

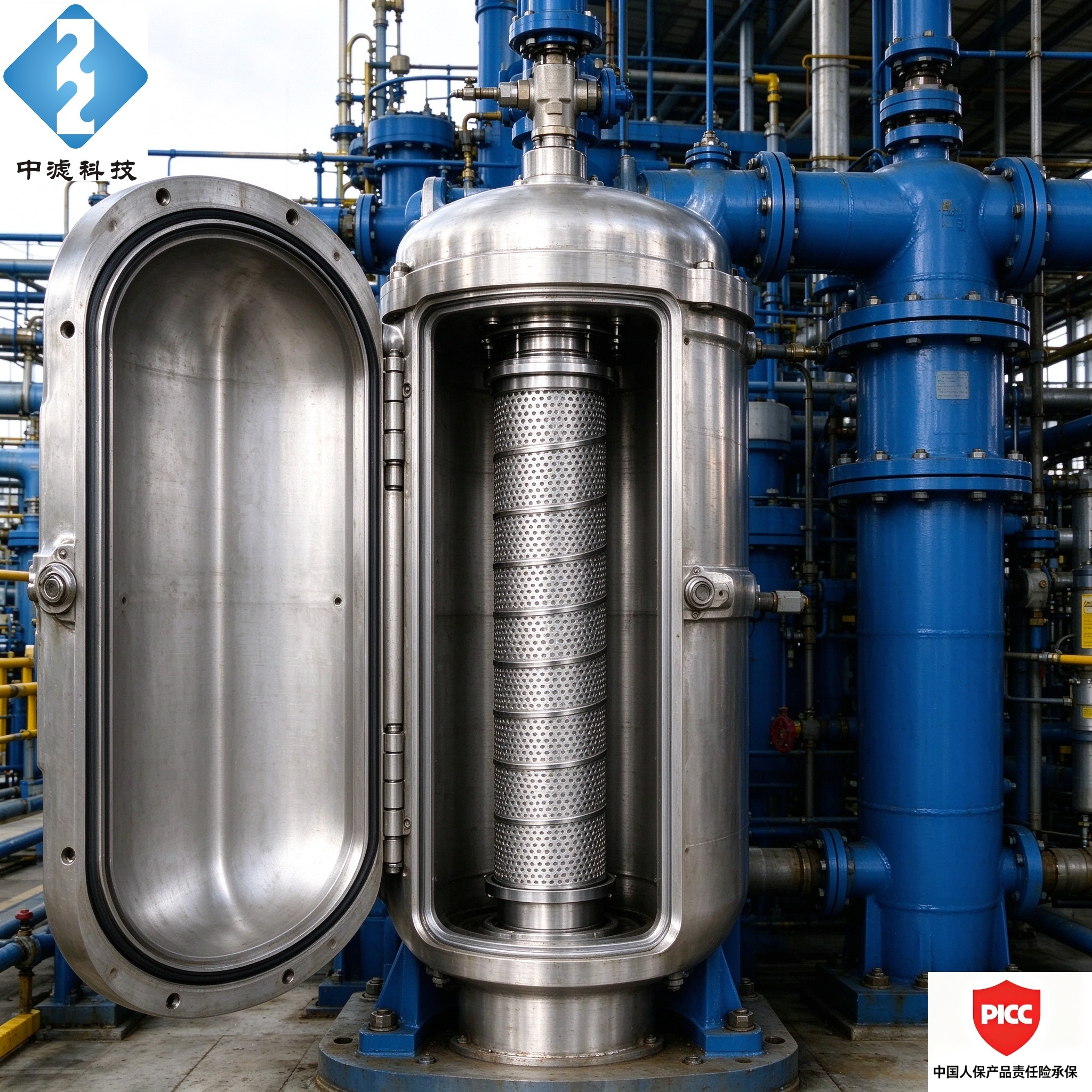

DCC-33605EBCE natural gas coalescing filter element is the core component of pipeline gas filter separator. It adopts multi-layer composite glass fiber coalescing media, reinforced stainless steel perforated outer protective sleeve, good impact resistance and differential pressure resistance. The end is equipped with rubber sealing ring to ensure sealing performance, avoid gas bypass and improve filtration & separation efficiency.

When gas flows through the filter element, solid particles are trapped. Micro liquid droplets merge and grow larger on filter media, then settle by gravity to remove water, oil and dust, so as to guarantee gas cleanliness.

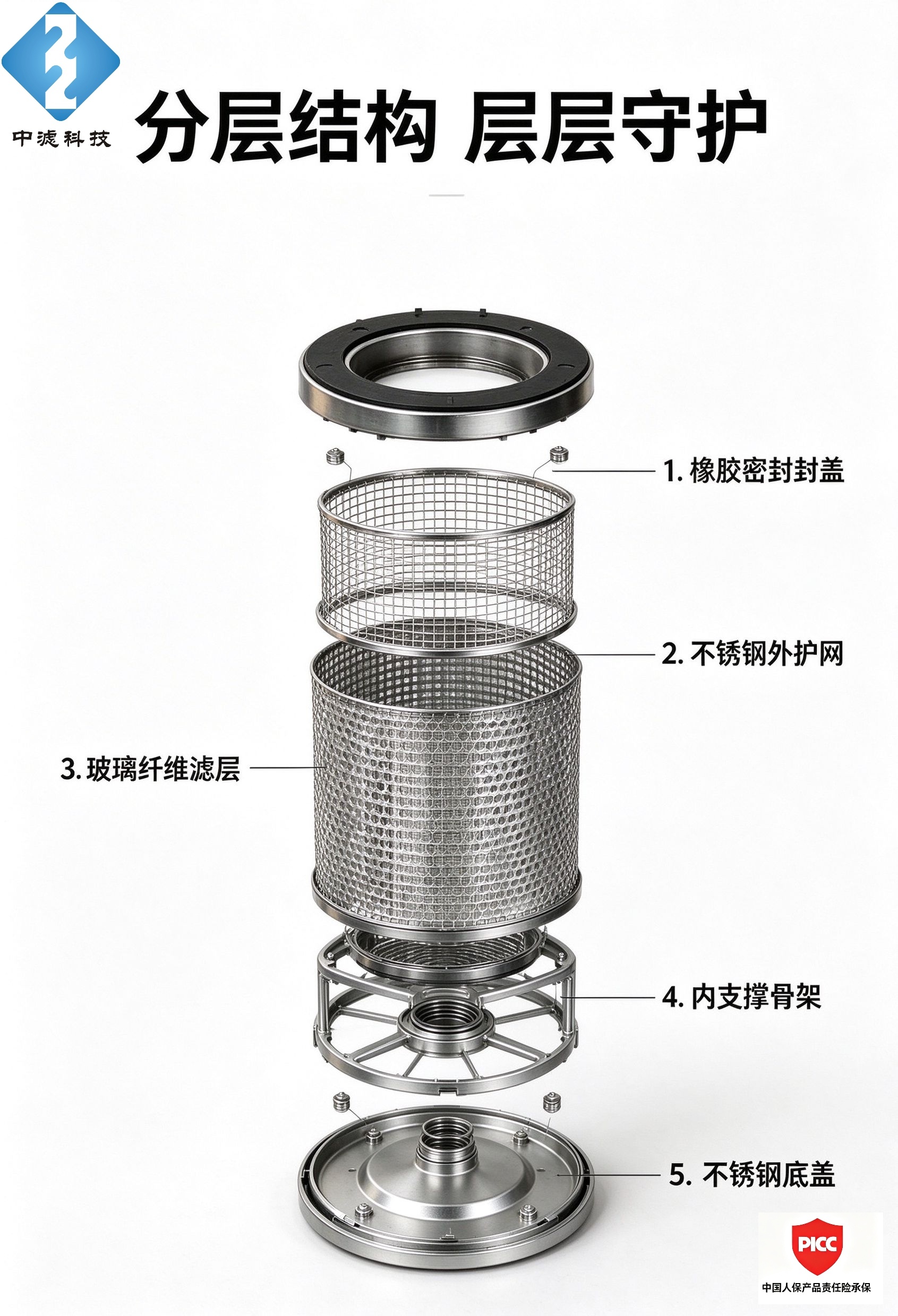

✅ Structure Features

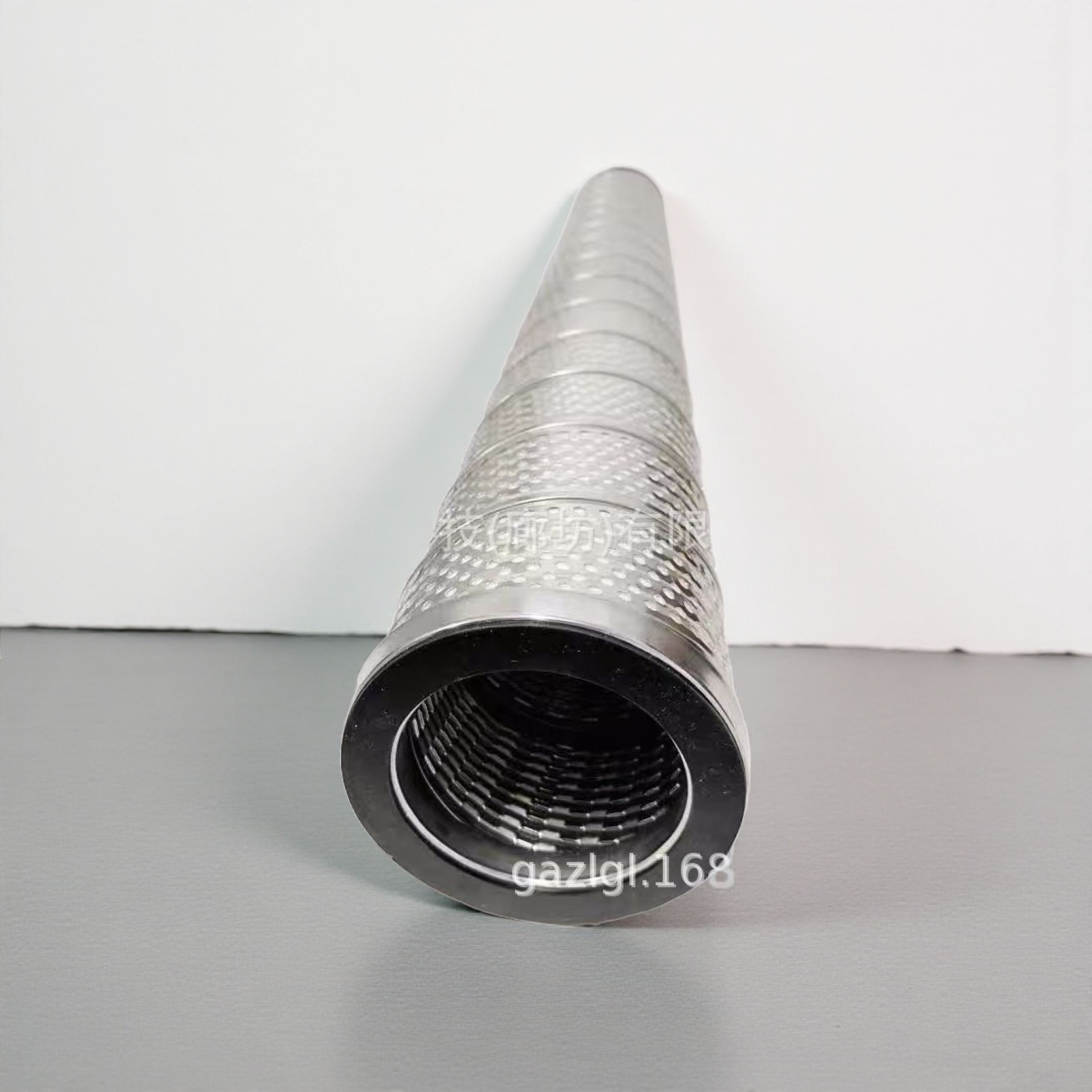

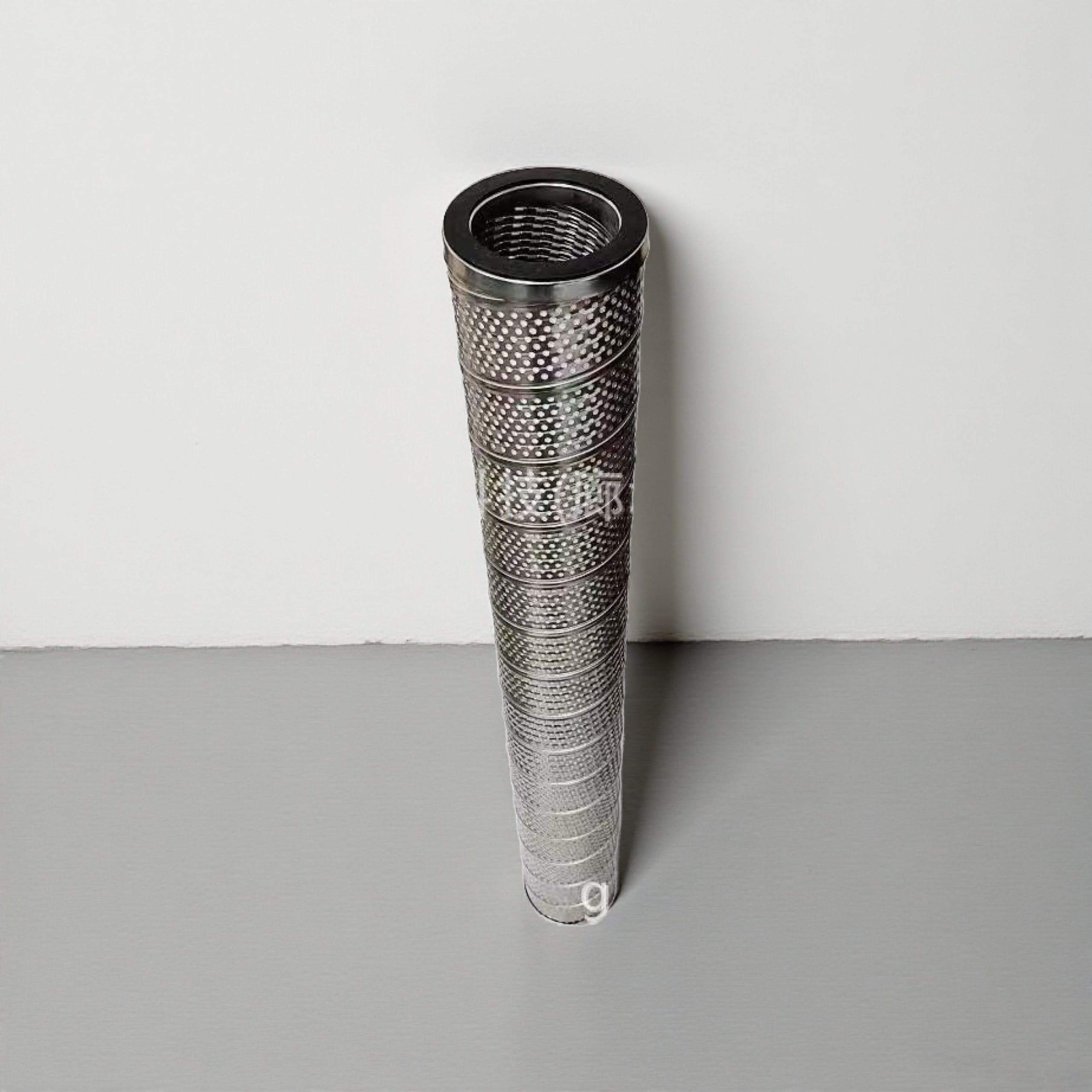

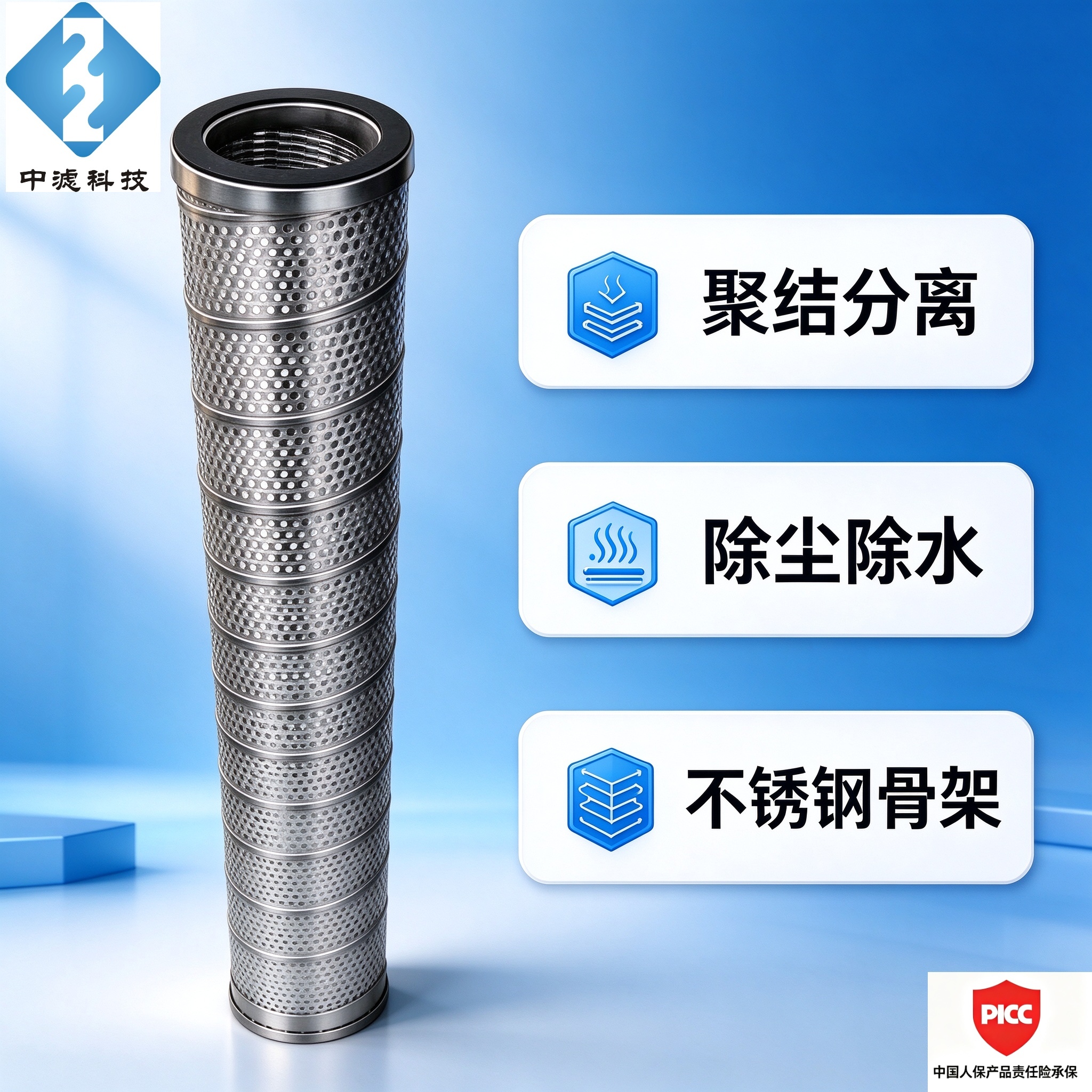

1. Outer Layer: Stainless steel perforated protective skeleton with segmented rolling reinforcement, corrosion-resistant, support filter media and prevent collapse under high pressure.
2. Filter Media: High-efficiency composite coalescing layer with excellent oil coalescing performance, high dirt holding capacity and stable separation efficiency.
3. End Cap & Seal: Carbon steel end cap + oil-resistant rubber gasket, reliable sealing, match filter housing interface.
4. Inner Support: Metal inner support mesh to improve overall pressure resistance.

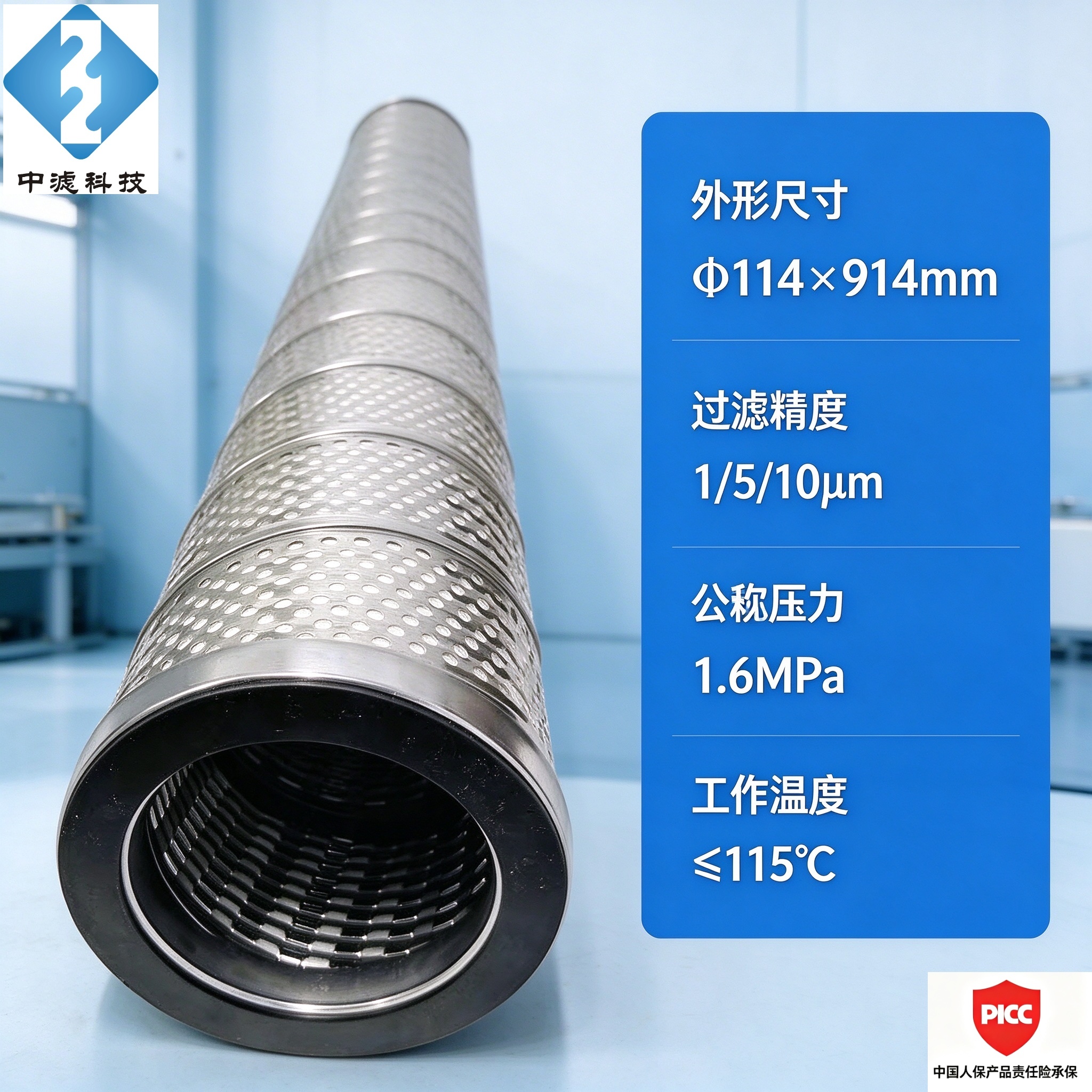

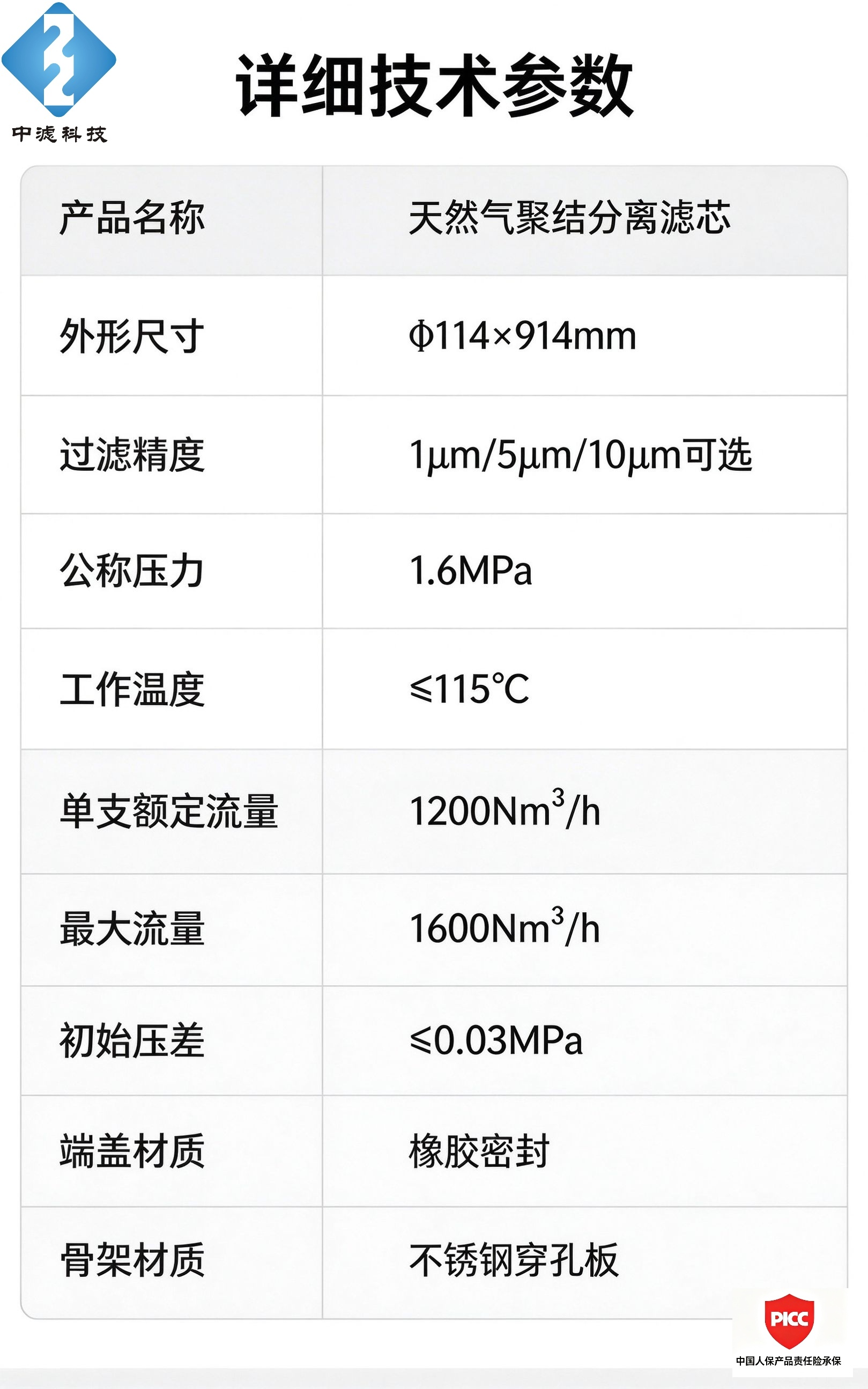

✅ Technical Specification

表格

✅ Advantages

1. High Coalescing Efficiency: Capture micro liquid droplets stably, reduce failure rate of downstream equipment.
2. Large Dirt Holding Capacity: Gradient multi-layer media, long service life.
3. Robust Construction: Stainless steel perforated frame, anti-deformation, suitable for harsh gas working conditions.
4. Excellent Sealing: Anti-aging rubber gasket, prevent gas bypass leakage.
5. Direct Replacement: Interchangeable with imported coalescer filter cartridges, save purchasing cost.
6. Quality Assurance: PICC product liability insurance, 100% inspection before shipment.

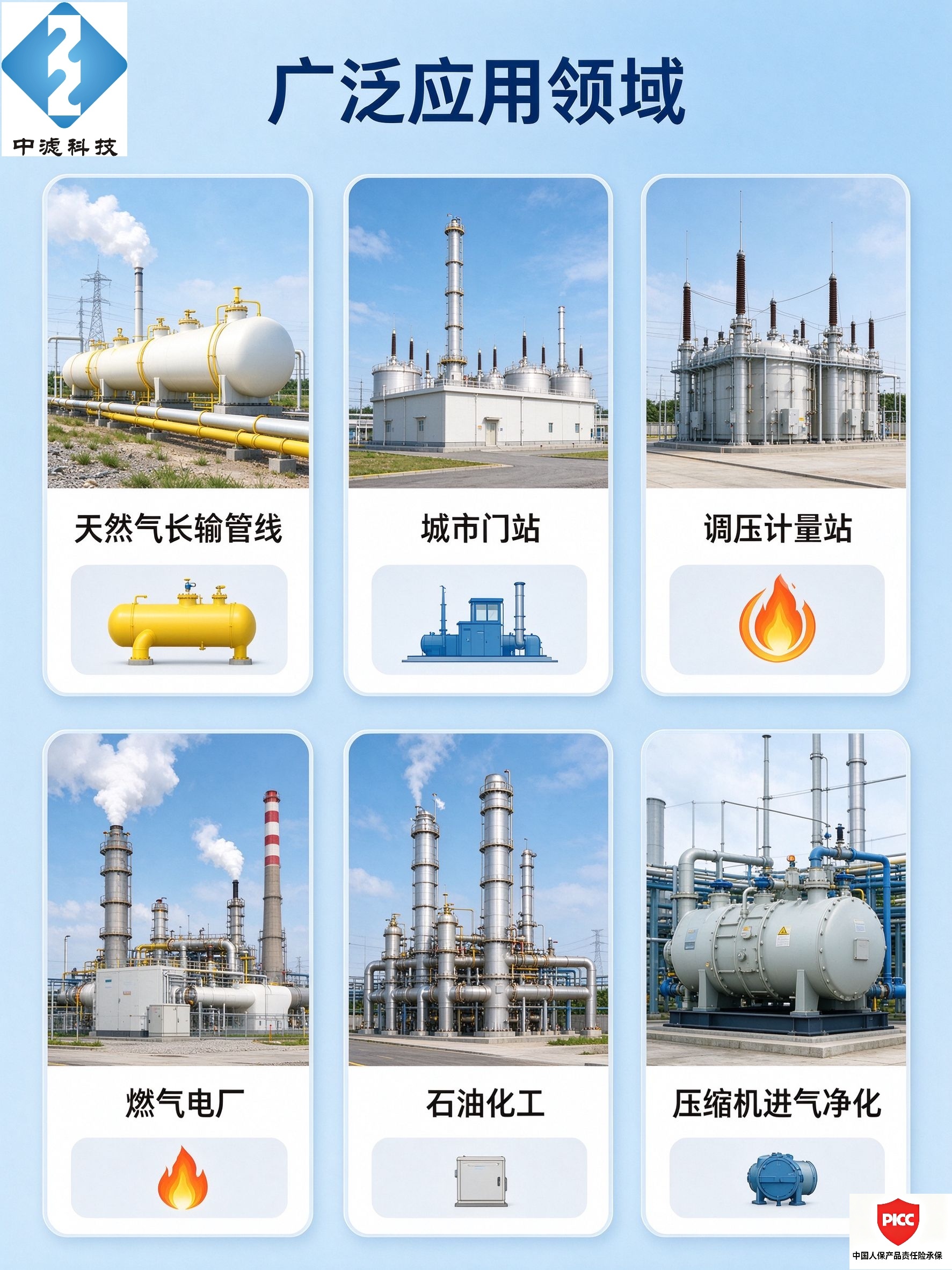

✅ Applications

Natural gas gathering stations, gas pipeline filter separators, gas pressure regulating stations, compressor inlet purification, coal bed gas treatment, petrochemical gas processing, power plant gas supply system. Function: Remove condensate oil, free water and solid particles from gas, protect precision equipment like pressure regulators, flow meters, gas turbines and compressors.

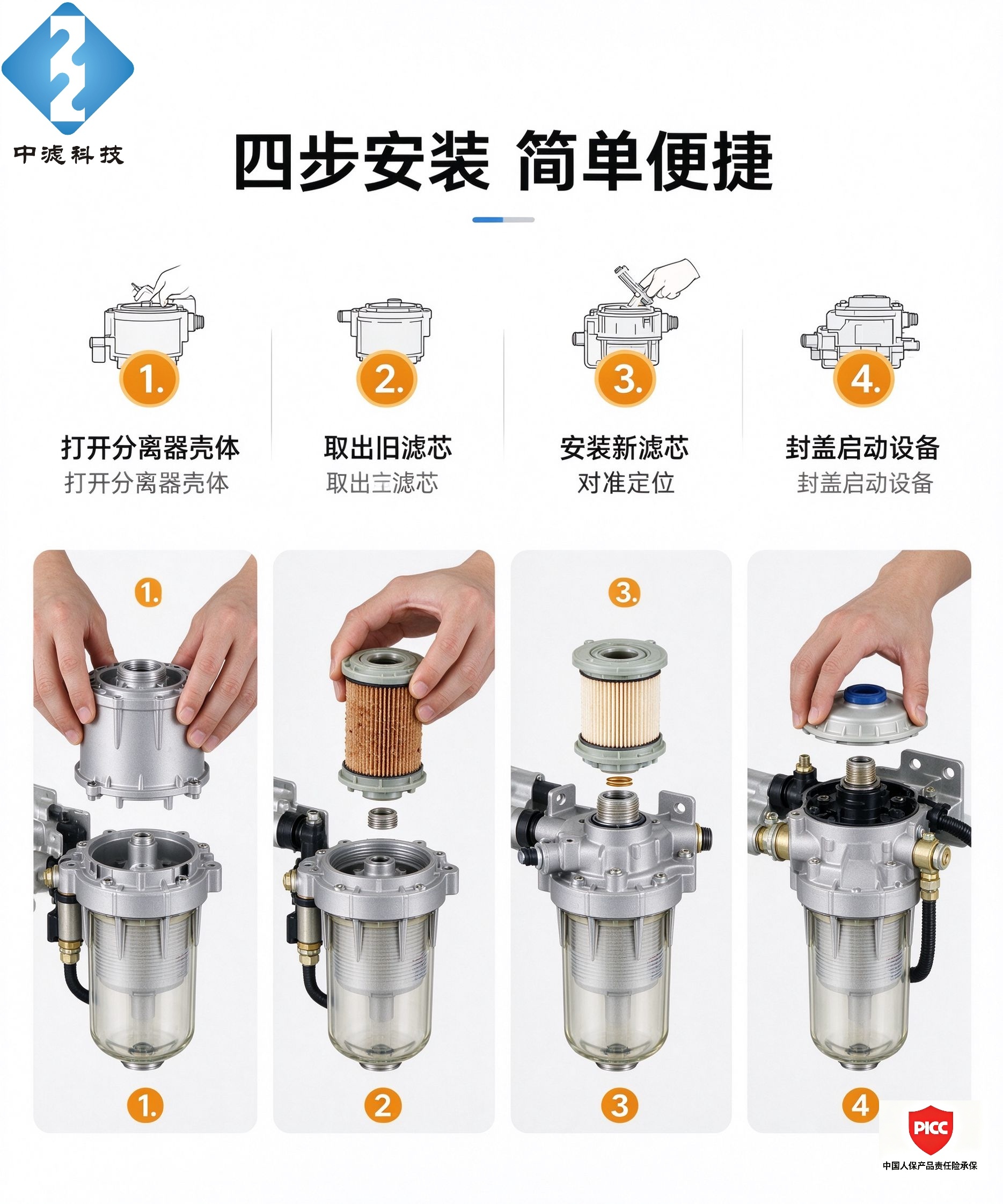

✅ Installation Guide

1. Check filter element and sealing ring for damage before installation.
2. Clean impurities inside filter housing.
3. Install vertically, fasten end cap evenly to ensure face sealing.
4. Boost pressure slowly at first startup, monitor differential pressure. Replace filter once differential pressure exceeds threshold.

✅ FAQ

Q: What is the difference between coalescing filter and separator filter? A: Coalescing filter merges tiny droplets into big ones; Separator filter is used together to prevent droplets from being carried away by gas flow. Better separation performance when used as a set. Q: Can you customize dimension and micron rating? A: Yes. Custom OD, length and filter precision are available according to your filter housing. Q: What is your lead time? A: Standard items in stock. Custom orders take 7-15 working days.
