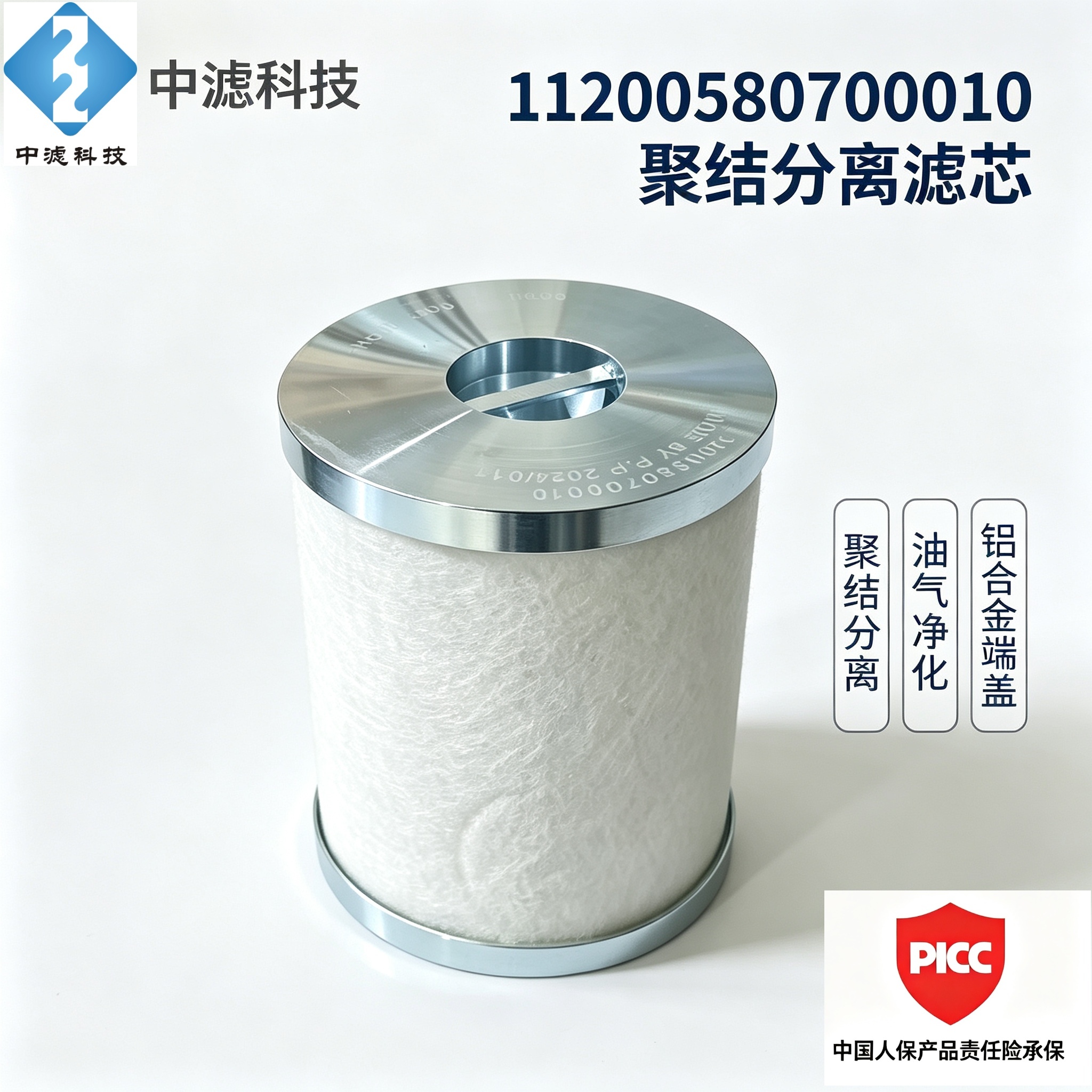

11200580700010 Coalescing Filter Element, Fiberglass Oil Water Separation Filter Cartridge For Compressed Air & Natural Gas

Product Introduction

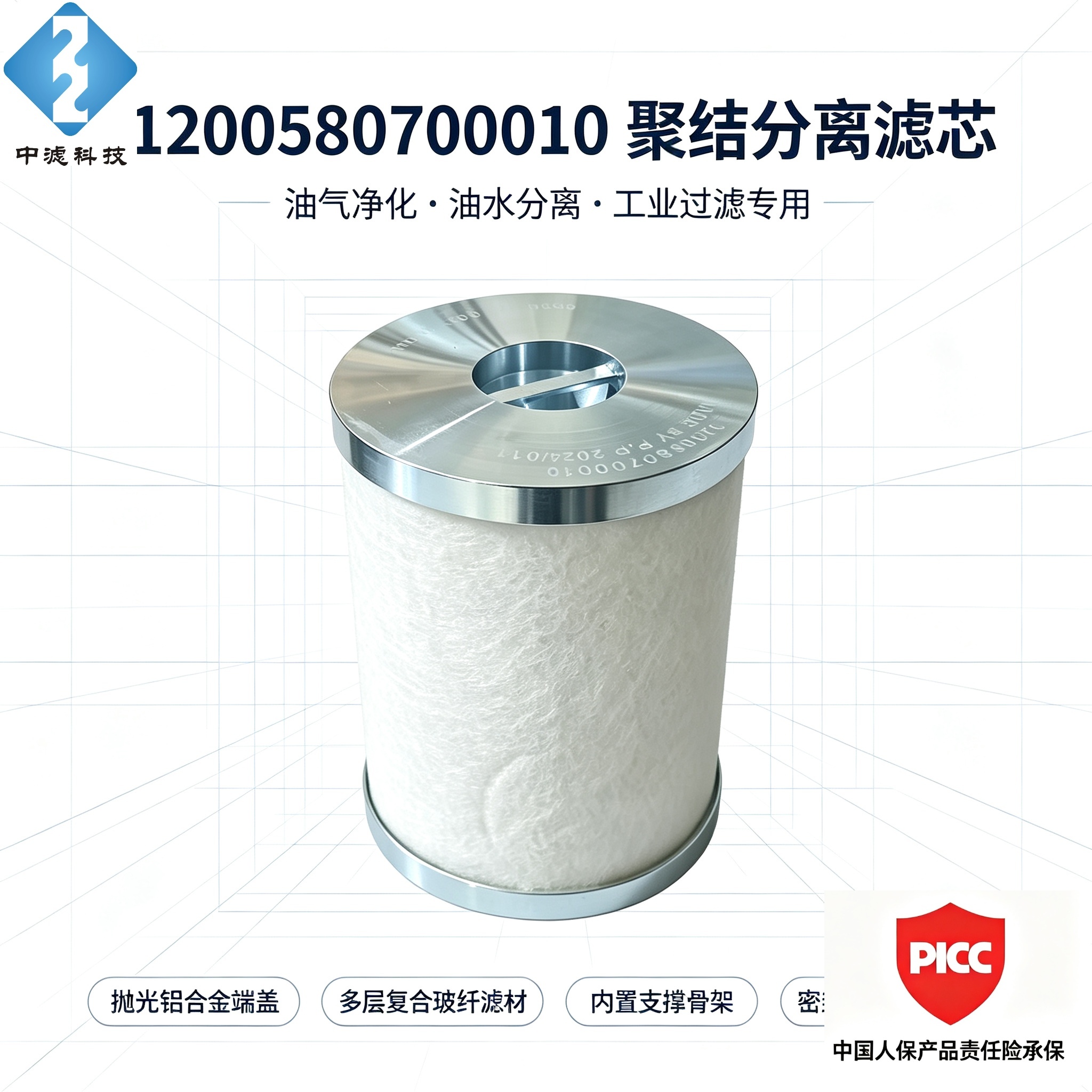

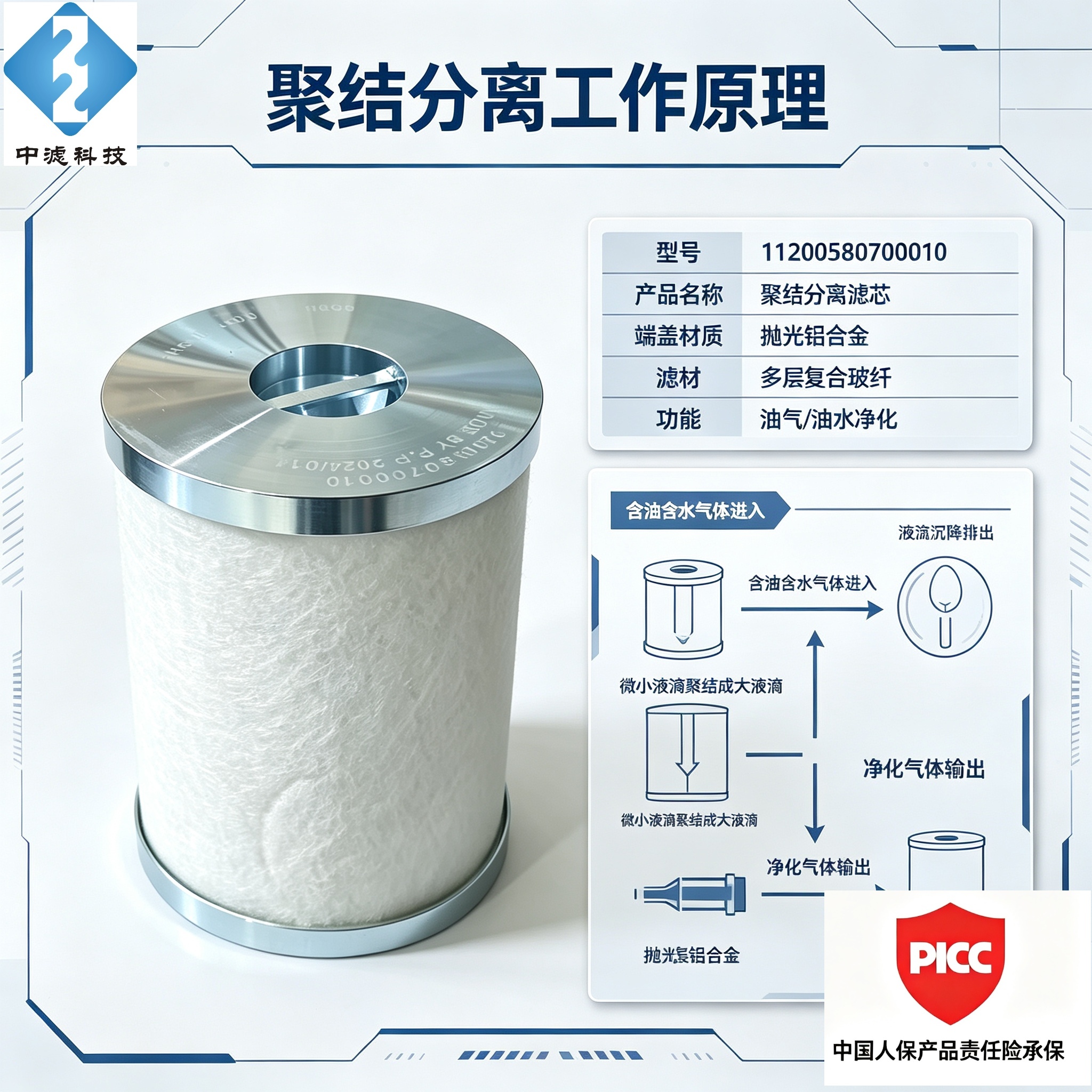

Model 11200580700010 coalescing filter element is a core industrial filtration component for gas-liquid separation. It is equipped with polished aluminum end caps and multi-layer composite fiberglass coalescing media, with built-in support skeleton and sealing gasket.

This filter element captures tiny oil mist and water droplets in industrial gas. Small droplets collide and merge inside the fiberglass media to form larger droplets, then settle down by gravity. It efficiently separates oil and water from gas flow to obtain clean gas, protecting downstream equipment and reducing medium loss. It can be used as a direct replacement for the original filter element.

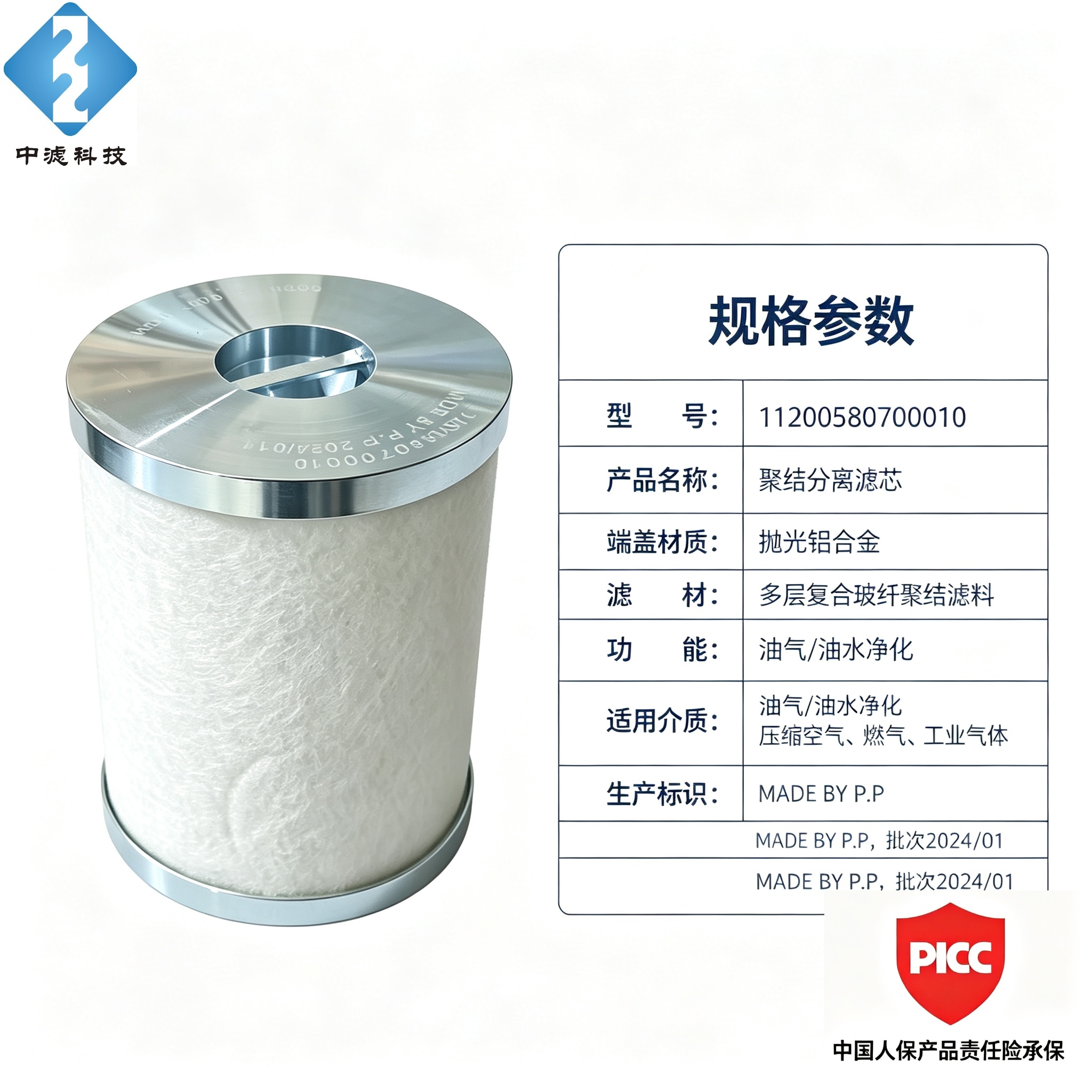

Technical Specifications

表格

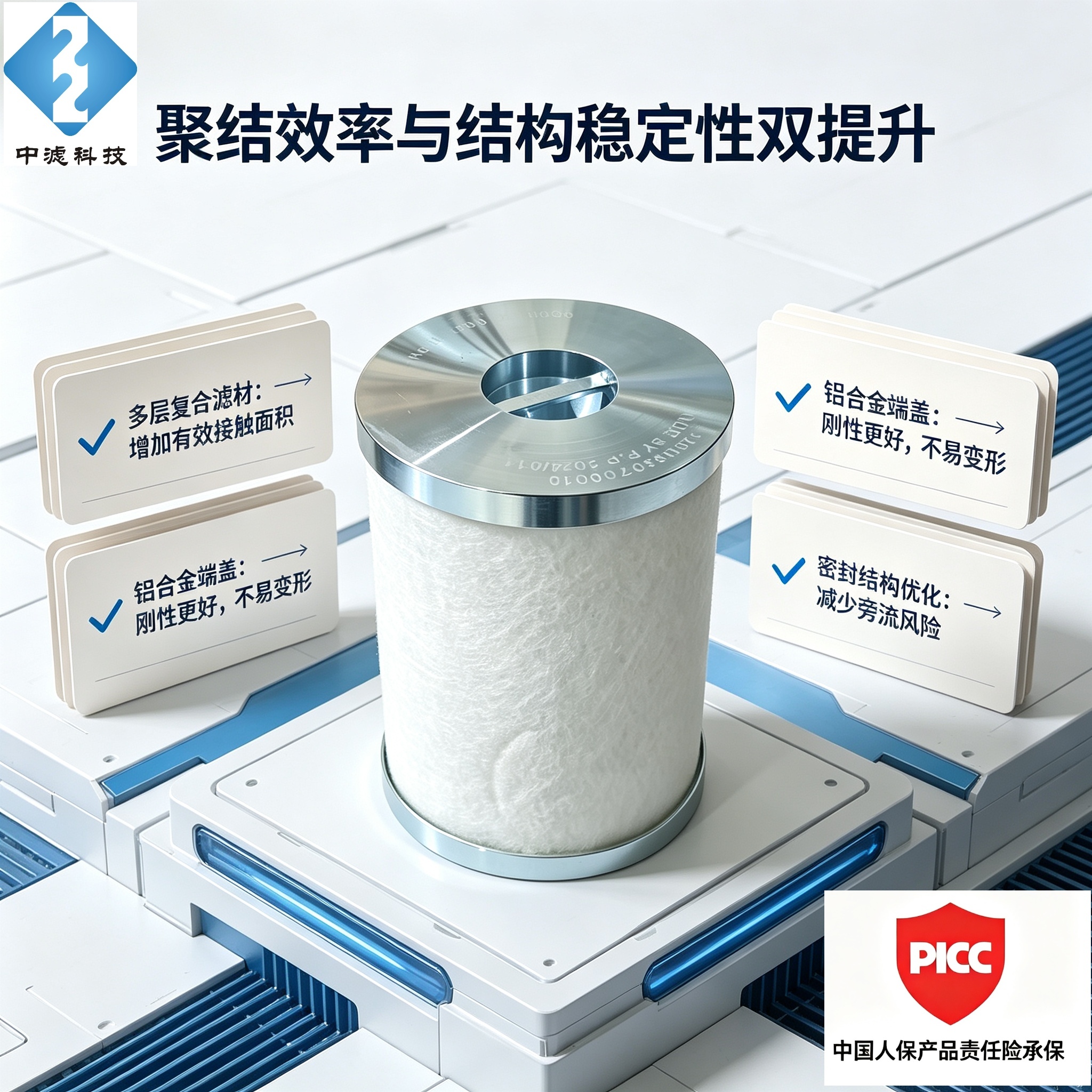

Product Advantages

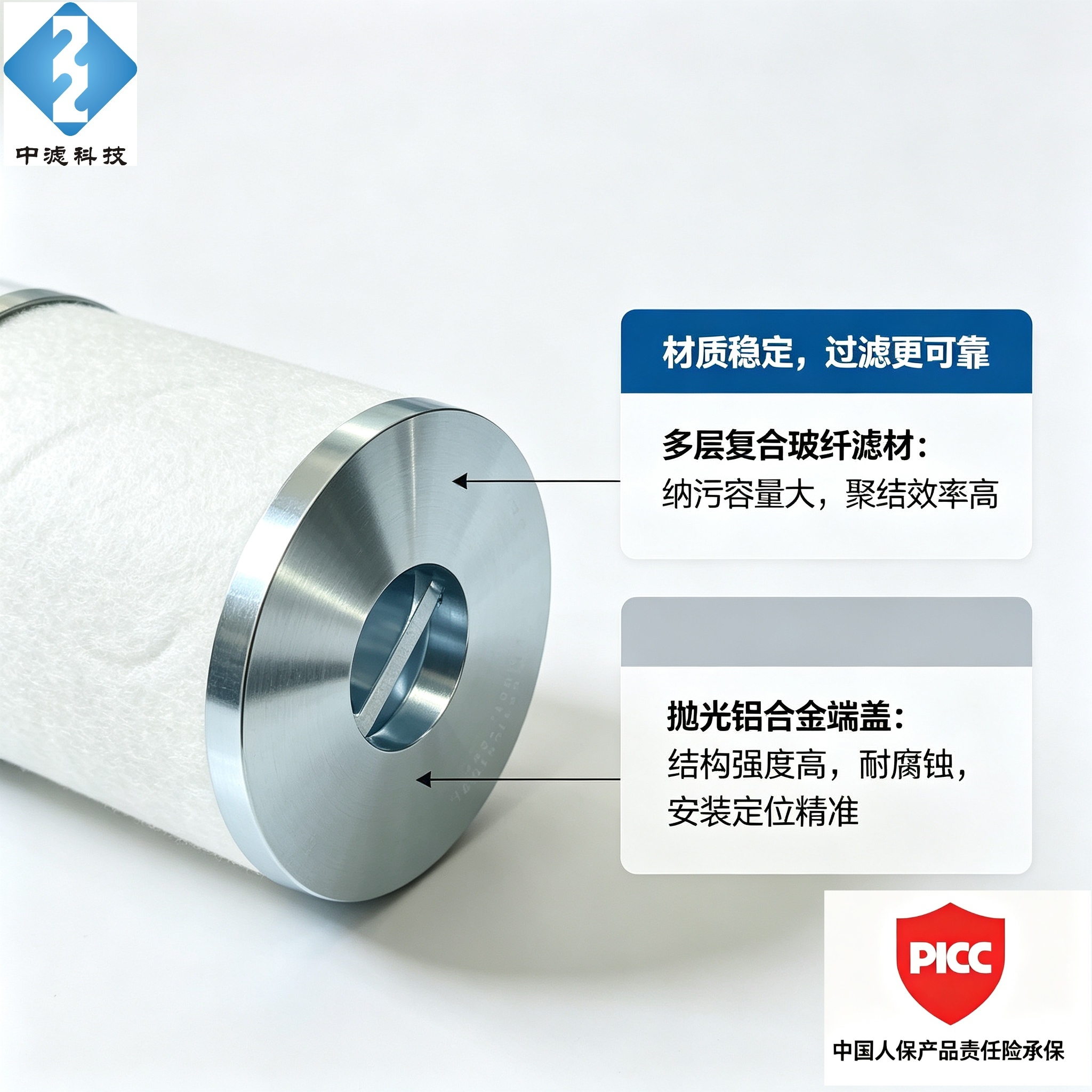

1. Premium composite fiberglass media: Excellent coalescing performance, high dirt holding capacity and long service life.

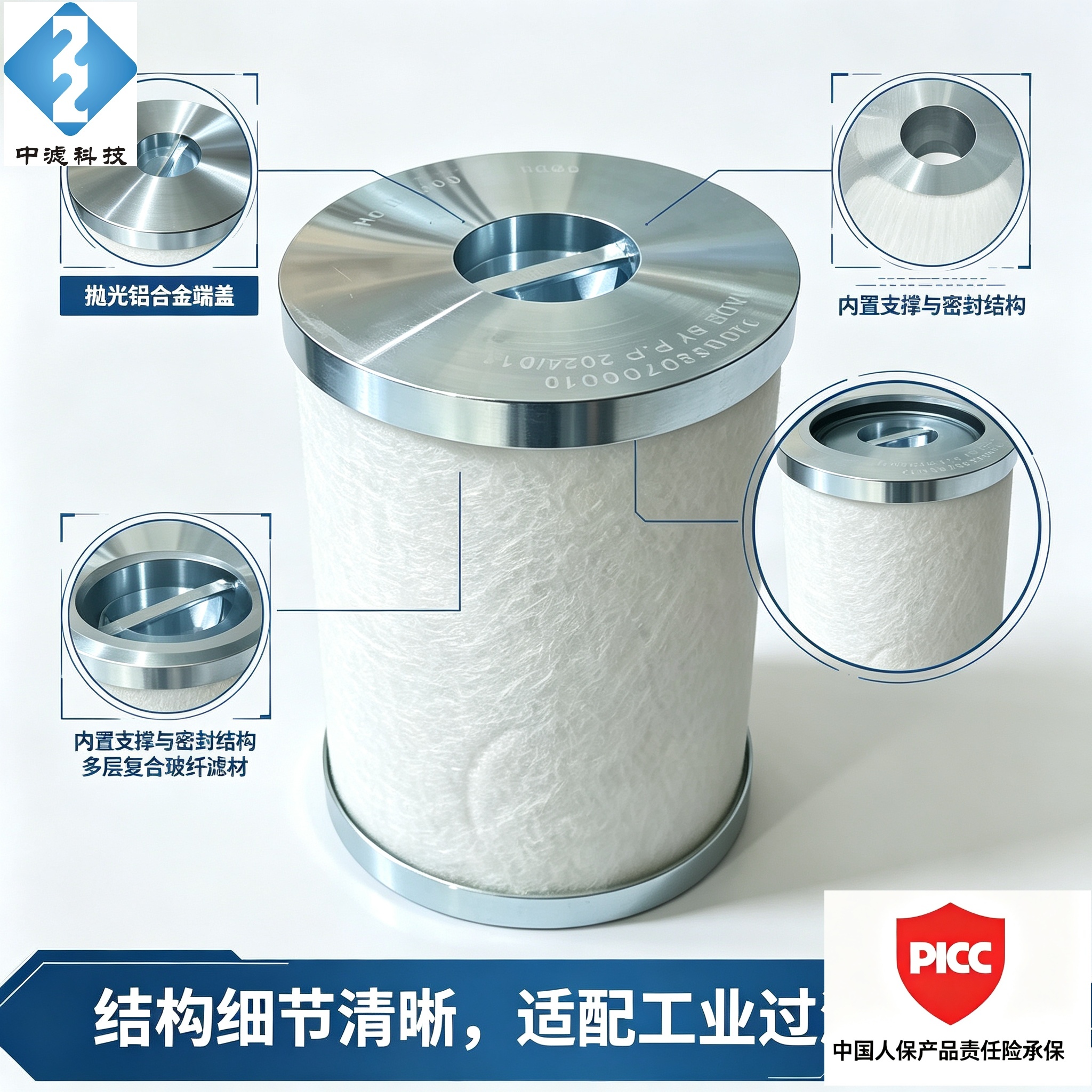

2. Precision polished aluminum end caps: High structural strength, not easy to deform, good corrosion resistance, accurate positioning during installation.

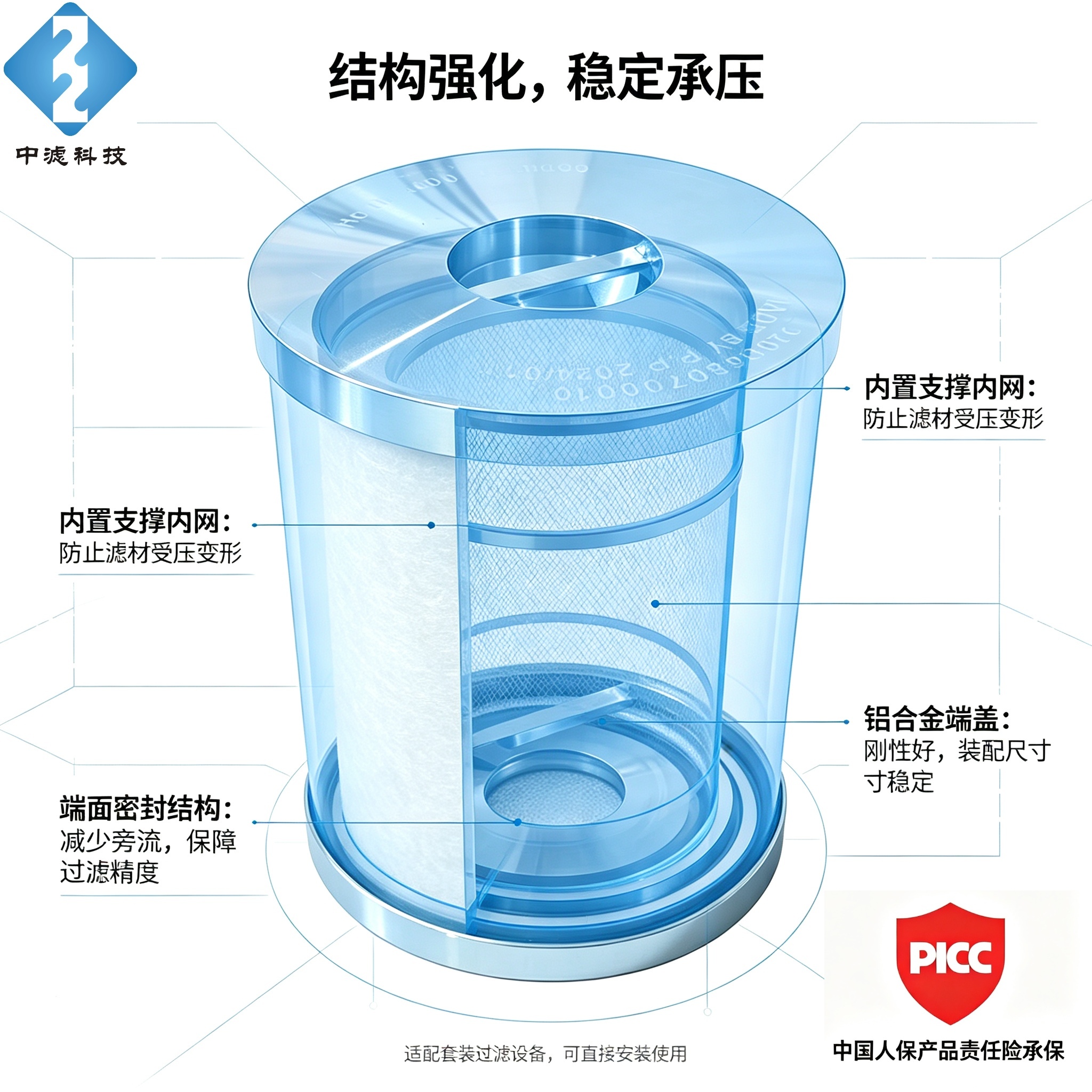

3. Built-in reinforcement skeleton: Prevent filter media deformation under working pressure and stabilize airflow.
4. Matching sealing gasket: Avoid bypass leakage to guarantee filtration efficiency.

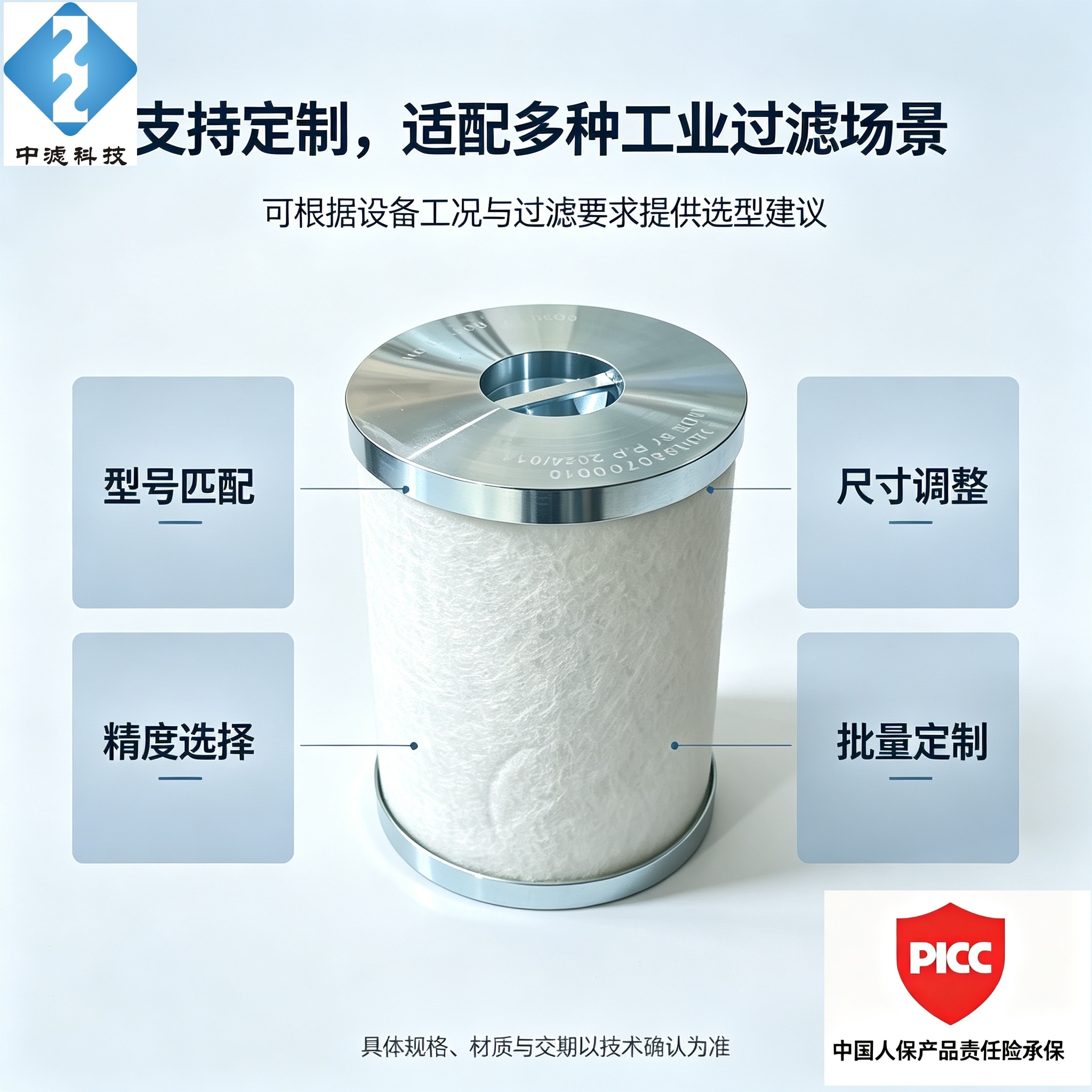

5. Custom service available: We can adjust dimensions and filtration accuracy according to customer working conditions.

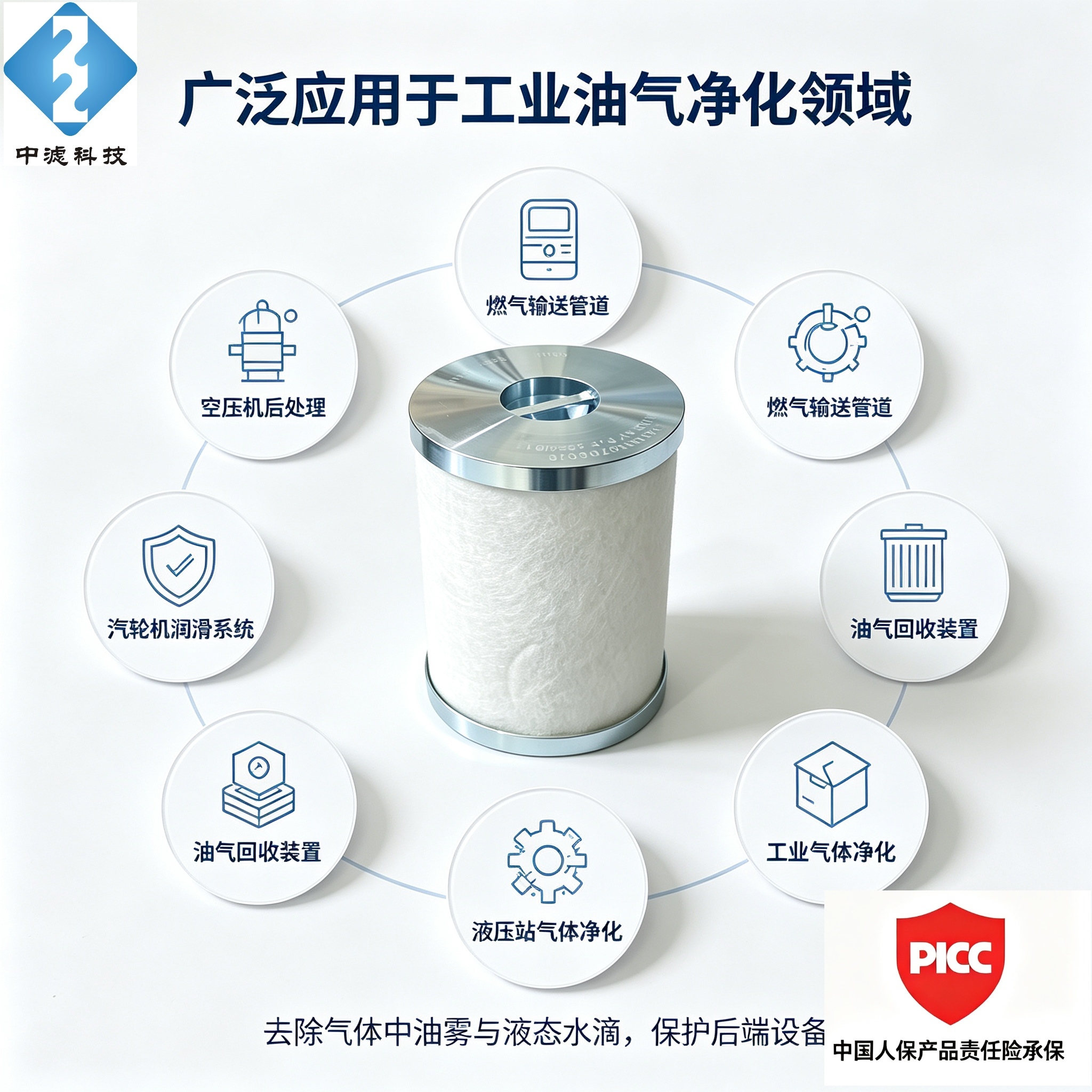

Application Fields

• Air compressor post-processing system
• Natural gas transmission pipeline
• Turbine lubrication system
• Oil & gas recovery equipment
• Hydraulic station gas purification and other industrial gas treatment systems

Working Principle

Gas mixed with oil mist and fine water droplets flows into the filter element. The multi-layer fiberglass media traps tiny liquid droplets. The fine droplets continuously collide and aggregate into large droplets. These large droplets fall under gravity and are separated from gas. Purified clean gas flows out from the center of the filter element to finish gas-liquid separation.

About Our Factory

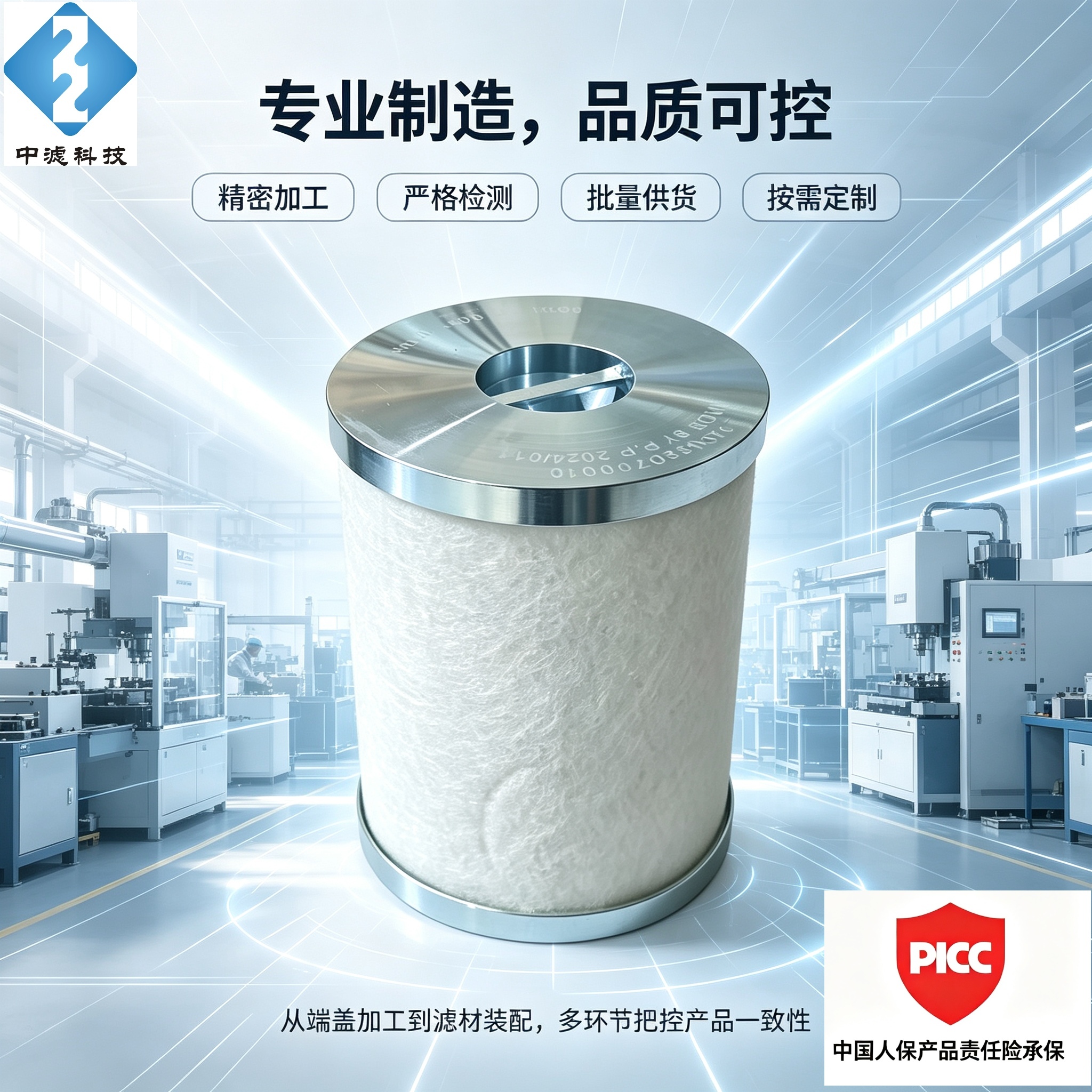

We are Zhonglv Technology, a professional manufacturer of industrial filter elements in Langfang, China. We produce various industrial filtration products. Our products are covered by PICC product liability insurance.

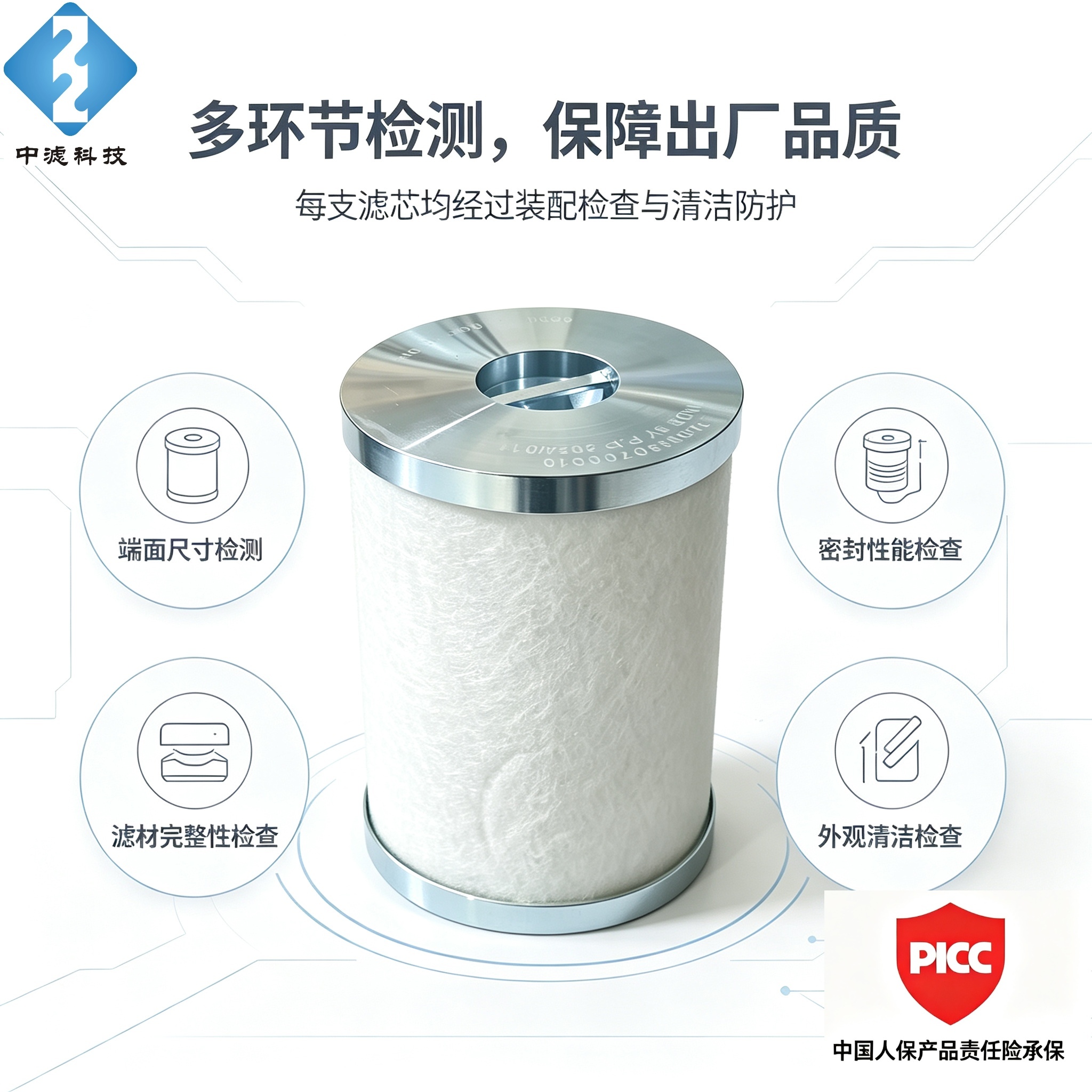

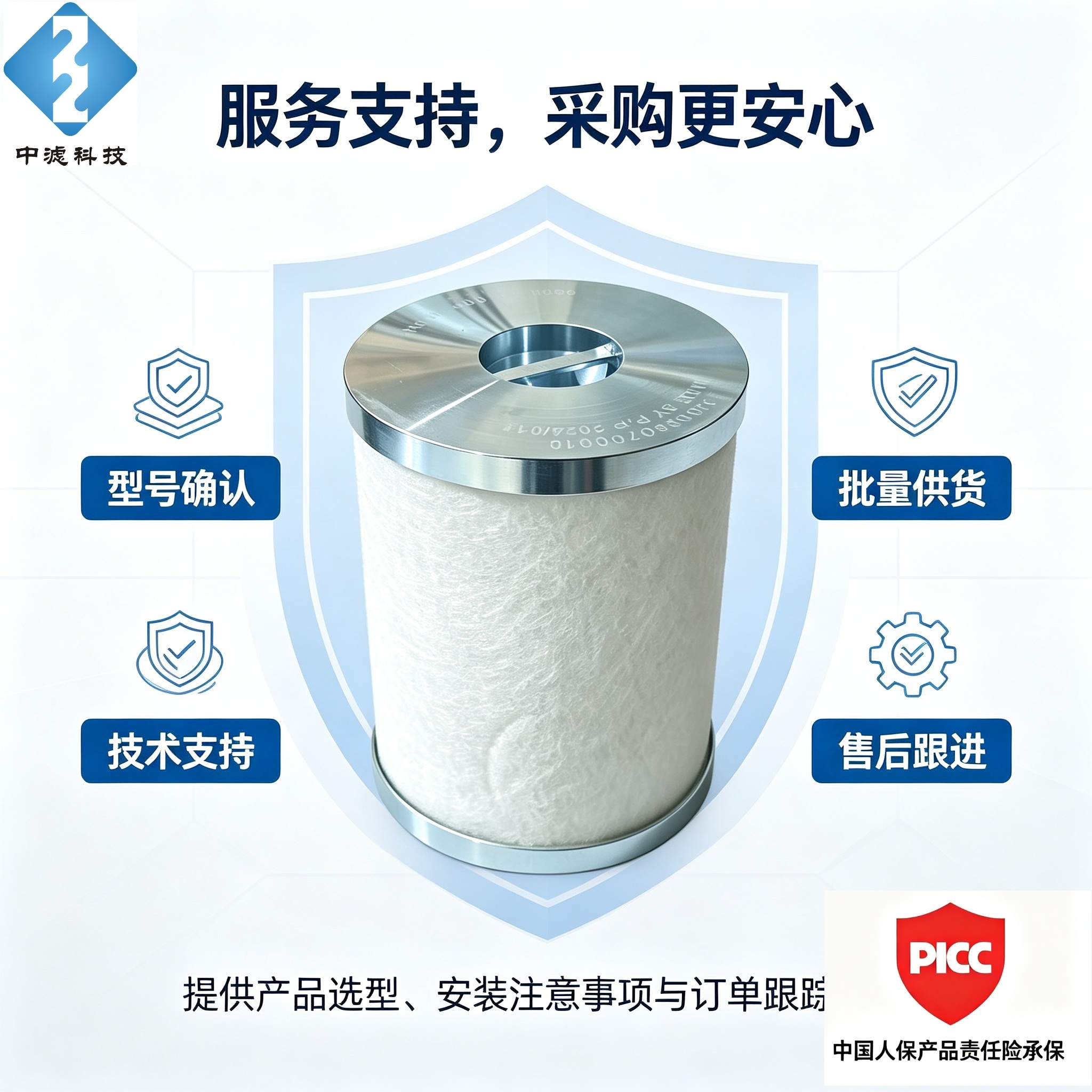

We support spot supply and mass customization. All filters are strictly inspected before delivery to ensure stable quality. Samples are available for testing. Welcome to contact us for technical selection and quotation.

Notes

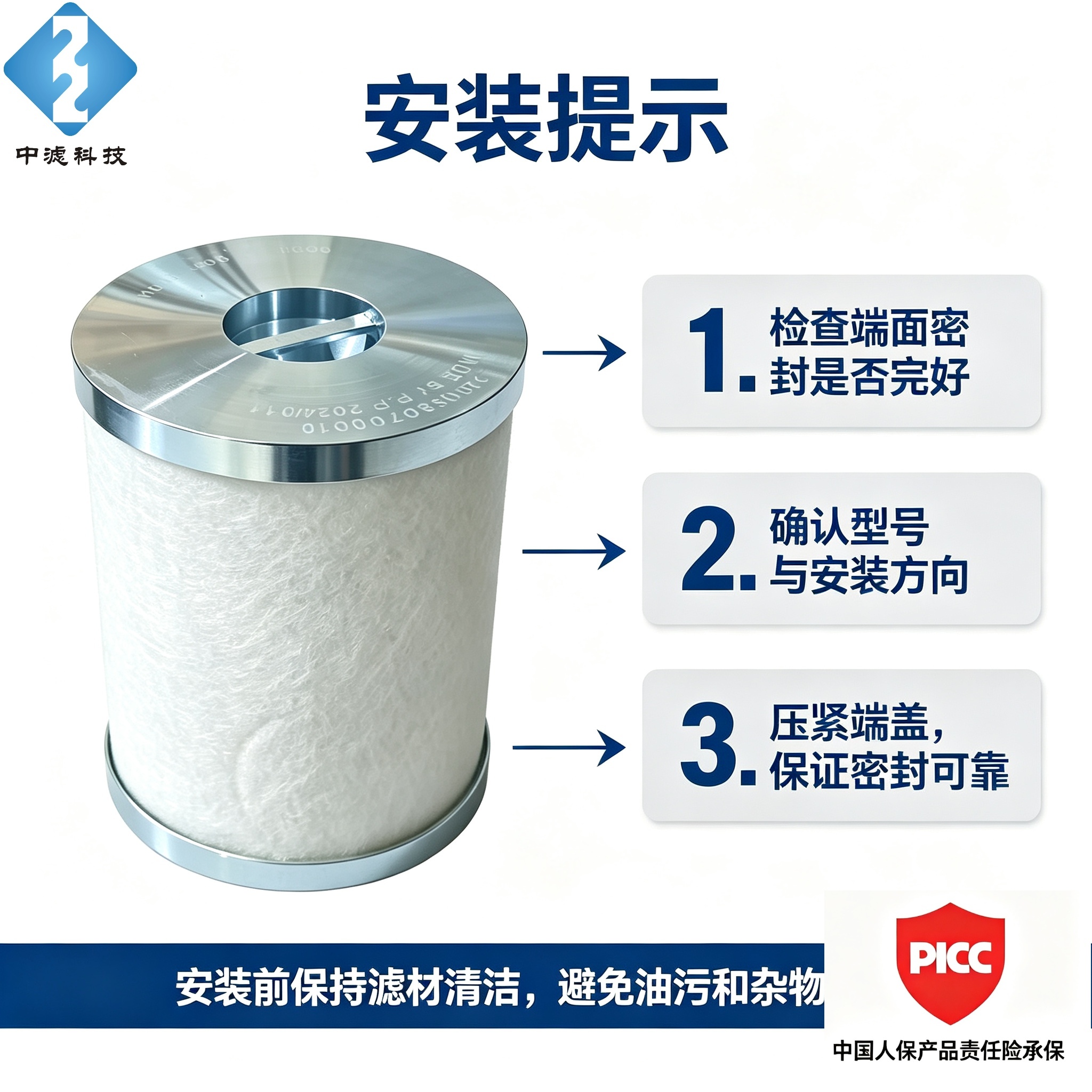

1. Check the model and sealing gasket integrity before installation.
2. Operate within rated pressure and temperature range. Overpressure operation is forbidden.
3. Replace the filter element in time when differential pressure reaches the setting value to prevent filter media damage.

补充：FAQ 模块

FAQ

Q1: Can you provide samples? A: Yes, we can supply samples for performance test.

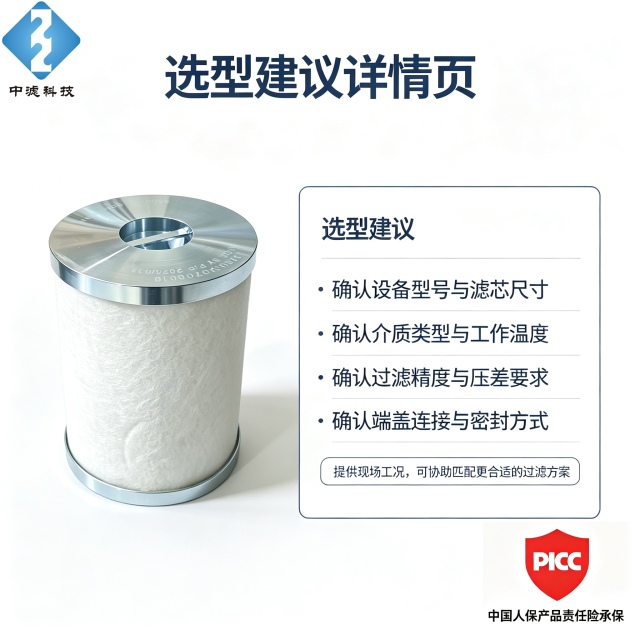

Q2: Can you customize filter elements according to my requirements? A: Custom size, filter media and precision are available. Please send your working condition and dimension drawing.

Q3: What is your delivery time? A: 1-3 days for in-stock items; 7-15 days for customized orders.

Q4: What is the MOQ? A: MOQ is 1 piece for standard model.
